| SPECIFICATION
& FUNCTION |
| |
|
| CAP-M3010PD |
| Dimension |
400X270X547(mm) |
| Net weight |
10kg |
| Voltage |
Customer Oriented |
| Power consumption |
45w |
|
 |
|
| CAP-M3012(Old model) |
| Dimension |
400X270X547(mm) |
| Net weight |
10kg |
| Voltage |
Customer Oriented |
| Power consumption |
45w |
|
|
 |
 |
 |
 |
| WHITE |
METAL |
BLACK |
BLACK RED |
|
|
| |
*Design of the exterior
cover is optional(Over basic quantity)
*Functions(filters) of the air purifier are optional according
to the condition of the place(Over basic quantity).
- 3012 model: PEC-ion system
- 3010PD model: Plasma complex system |
| |
- Digital LED
- Remote Control
- "Sleeping¡" function : Low noise operating
- Artificial Intelligence alarm function : Indicates exchanging
time of HEPA filter and Alarm bell is ringing in case
of faults or malfunctions of products
- "Going-out" function : While one is out or
sleeping
- Artificial Intelligence sensor : Automatic operating
according to the level of air pollution inside
PEC-ion System; PhotoElectroCatalytic -ion system
Elimination of Carbon Monoxide(CO) World First Technology
Elimination of Volatile Organic Compounds
Elimination of Influenza Virus
Certified by Biotechnology Industrialization Institute
of engineering college, Yonsei University, Korea |
| |

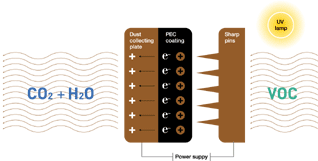

PEC-ion System; PhotoElectroCatalytic-ion
System
CAP3000 series
have 12 steps of PEC-ion system
At the normal temperature, this technology can eliminate
*VOCs more excellently than other air purifier products.
By using Oxidation of Photo - catalyst reaction &
High Voltage Discharge Technology, this technology can
oxidize VOCs into Carbon dioxide(CO2) & H2O.As a complex
way of air purifier, CAP3000 series have not only outstanding
eliminating capacity of micro-dust,
particles etc but also outstanding sterilizing capacity
so that they can eliminate Influenza virus |
| |
|
| |
Plasma Anion- Forest-Bathing
Efficiency
Anion Generator is built in and it generates over 50k
to 100k pcs of Anion(cc/piece) and makes fresh air such
as he air around Forest or Waterfall |
| |
|
| |
|
|
| Complex type of 12 steps
air purifying filter system |
| |
| |
| 7steps of euro PEC system - By making
airflow euro type, maximize dust collecting efficiency
|
 |
5steps of complex HEPA filter
- HEPA filter eliminate micro-dust
by 99.97% and Carbon filter strongly eliminate bad odor
|
 |
| |
* What is Chungpung Mugu's
Nano Metal Carbon filter?
The catalytic material such as Nano-copper or Nano-silver
is sprayed onto the natural activated carbon pieces.
Powerful performance and deodorizing, not only by simple
absorbing but also by catalytic disintegrating mechanism. |
| |

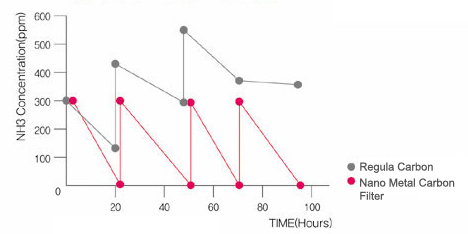

| Nano Metal Carbon filter's
Performance |
Test for Ammonia disintegration
rate
Comparing the disintegration
rate of regular carbon filter and Nano-matal carbon filter |
| |

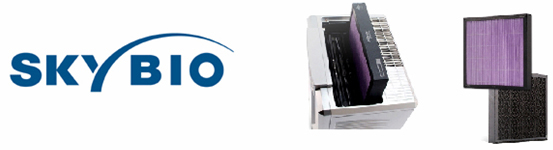

| * What is Sky-Bio |
| |
Human Influenza A-type Test Report
(Avian Influenza #7 are variations from Human Influenza
A-type)
Tester: AMS Laboratories Pty Ltd, Australia
Ref. #0502111, on February 18, 2005
Applied by: SK Chemicals Co.,Ltd. Korea
Results: A-type Influenza eliminated in 10 minutes. ->
Test report posted on our webhard
...The test run with 1% Skybio, filters treated with 4%
Skybio... |
| |
| Anti-bacteria effect
with Guacil TX |
|
100% decreasedin 18 hours!
*Tested with non-woven fabrics Spunbond, treated with
3%
*Ref#. KS K 0693-2001
*Tested bacteria: Staphylococcus aureus(ATCC 6538),
Klebsiella pneumonia(ATCC 4352)
|
| |
 |
| |
| ATCC
6538 |
|
ATTCC 4352 |
 |
|
 |
|
*100% sterilized with
3%
*Filters treated with 4% |
| |
| Mold Sterilization Effect
with GUACIL |
| |
Methods- ASTM G21 Method
Molds-Penicillium citrinum(ATCC9849) / Aspergillus niger(ATTCC9642)
The Pictures of test results Halo zone was made
with SKYBIO 4%
1. ASTM G21 |
| |
| Penicillium
citrinum(ATCC9849) |
|
Aspergillus niger(ATTCC9642) |
 |
|
 |
|
| |
