SPECIFICATION & FUNCTION
|
 |
| |

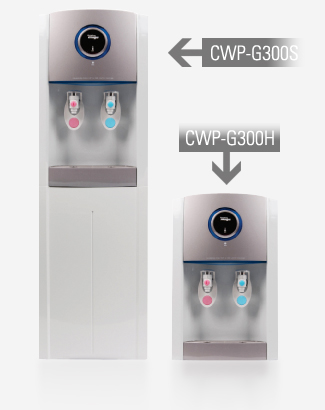

| Model |
CWP-G300S |
CWP-G300H |
| Voltage |
Customer Oriented |
|
| Product Dimension |
310X310X470(mm) |
310X310X980(mm) |
| Net Weight |
14kg |
18kg |
| Capacity |
Cool[3L], Hot[1.2L] |
Cool[3L], Hot[2L] |
| Power Consumption |
Cool[110w], Hot[450w] |
|
| Frontal Exterior Box Material |
ABS |
|
| Insulation Type |
E Insulation |
|
| Insulation Type |
EGI |
|
| Water Preserve Grade |
IPX1 |
|
| Card Length |
1.8M |
|
| Suitable Climate |
CLASS(N) |
|
| Purification Method |
U.F Method |
|
| Water Supplying Method |
Direct Connection |
|
| Cooler |
|
|
| Cooling Capacity |
4~12 |
|
| Temp. Control |
Thermostat |
|
| Cooling Method |
Compressor type |
|
| Refrigerant Heater |
R-12(40g)
|
|
| Heater |
|
|
| Heating Capacity |
70~81 |
75~85 |
| Temp. Control |
Bimetal(automatic return) |
|
| Heating Method |
Sheath Heater |
|
| Overheat Control |
Bimetal(manual return) |
|
|
| |
H2O purification
system
Sediment pre-filter:
This filter is made with using our patented melt-brown
method. It eliminates the impurities such as
rust, dirt, mud, sand and other deposits. By maximizing
the purification activity from the early step of
the procedure, it makes the main filter last longer. It
filters not only using its surface but also using
center area with Depth Filtration Method, so that it holds
the impurities longer for better filtering. It is
environment friendly product that its contents are environmentally
safe to be incinerated.
Pre-carbon filter:
Carbon filter absorbs and eliminates the odor
using the absorption of activated
carbon and makes the water close to the natural water.
UF filter:
UF filter is composed with extremely tiny nozzle-shaped
white pores. It eliminates and germs
smaller than 0.01 micron and let the clean water with
mineral pass through.
Poster-carbon filter:
It is using the activated carbon with higher degree of
purity than one in the
pre-carbon filter. To set edible Ph., it minimizes the
breakage of particles by completing acid-treatment
and airborne-particle treatment. It makes the water filtered
from the main filter taste sweeter and
fresher.
|
| |
|
|
